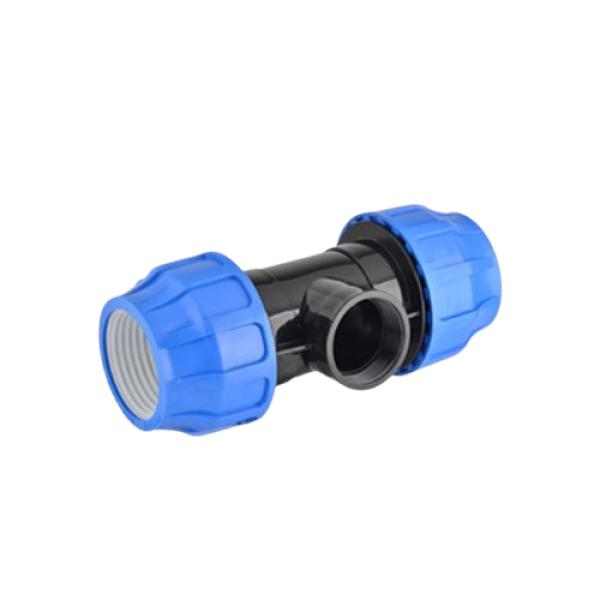

Pimtaş Kaplin Dişi TE – Mavi Seri
| ÇAP/DIA | (PN) | KOD/CODE | A / Z (MM) | L (MM) | H (MM) |
| 20×1/2”x20 | PN16 | EX70002300 | 48,5/11 | 119 | 34,5 |
| 20×3/4”x20 | PN16 | EX70002301 | 48,5/11 | 119 | 35,5 |
| 25×1/2”x25 | PN16 | EX70002302 | 53/13,5 | 133 | 37,8 |
| 25×3/4”x25 | PN16 | EX70002303 | 53/13,5 | 133 | 38,8 |
| 25×1”x25 | PN16 | EX70002304 | 53/13,5 | 133 | 42,8 |
| 32×1/2”x32 | PN16 | EX70002305 | 57/17 | 148 | 42,5 |
| 32×3/4”x32 | PN16 | EX70002306 | 57/17 | 148 | 43,5 |
| 32×1”x32 | PN16 | EX70002307 | 57/17 | 148 | 47,5 |
| 40×3/4”x40 | PN16 | EX70002308 | 73,5/21 | 189 | 49,9 |
| 40×1”x40 | PN16 | EX70002309 | 73,5/21 | 189 | 53,9 |
| 40×1 1/4”x40 | PN16 | EX70002310 | 73,5/21 | 189 | 55,9 |
| 50×1”x50 | PN16 | EX70002311 | 84,5/26 | 221 | 59,9 |
| 50×1 1/4”x50 | PN16 | EX70002312 | 84,5/26 | 221 | 61,9 |
| 50×1 1/2”x50 | PN16 | EX70002313 | 84,5/26 | 221 | 61,9 |
| 63×1 1/4”x63 | PN16 | EX70002314 | 92,5/32,5 | 250 | 69,3 |
| 63×1 1/2”x63 | PN16 | EX70002315 | 92,5/32,5 | 250 | 69,3 |
| 63×2”x63 | PN16 | EX70002316 | 92,5/32,5 | 250 | 71,3 |
| 75×2”x75 | PN16 | EX70002317 | 127/38,5 | 331 | 82,5 |
| 75×2 1/2”x75 | PN16 | EX70002318 | 127/38,5 | 331 | 86,5 |
| 90×2 1/2”x90 | PN16 | EX70002319 | 159/46 | 410 | 98,3 |
| 90×3”x90 | PN16 | EX70002320 | 159/46 | 410 | 100,3 |
| 110×3”x110 | PN16 | EX70002321 | 185/56 | 482 | 112,5 |
| 110×4’’x110 | PN16 | EX70002322 | 185/56 | 482 | 118,5 |
